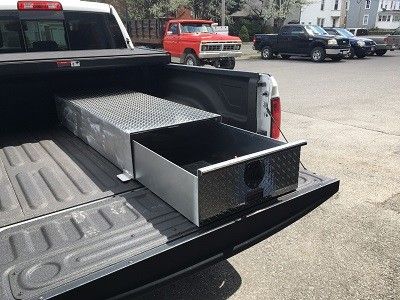

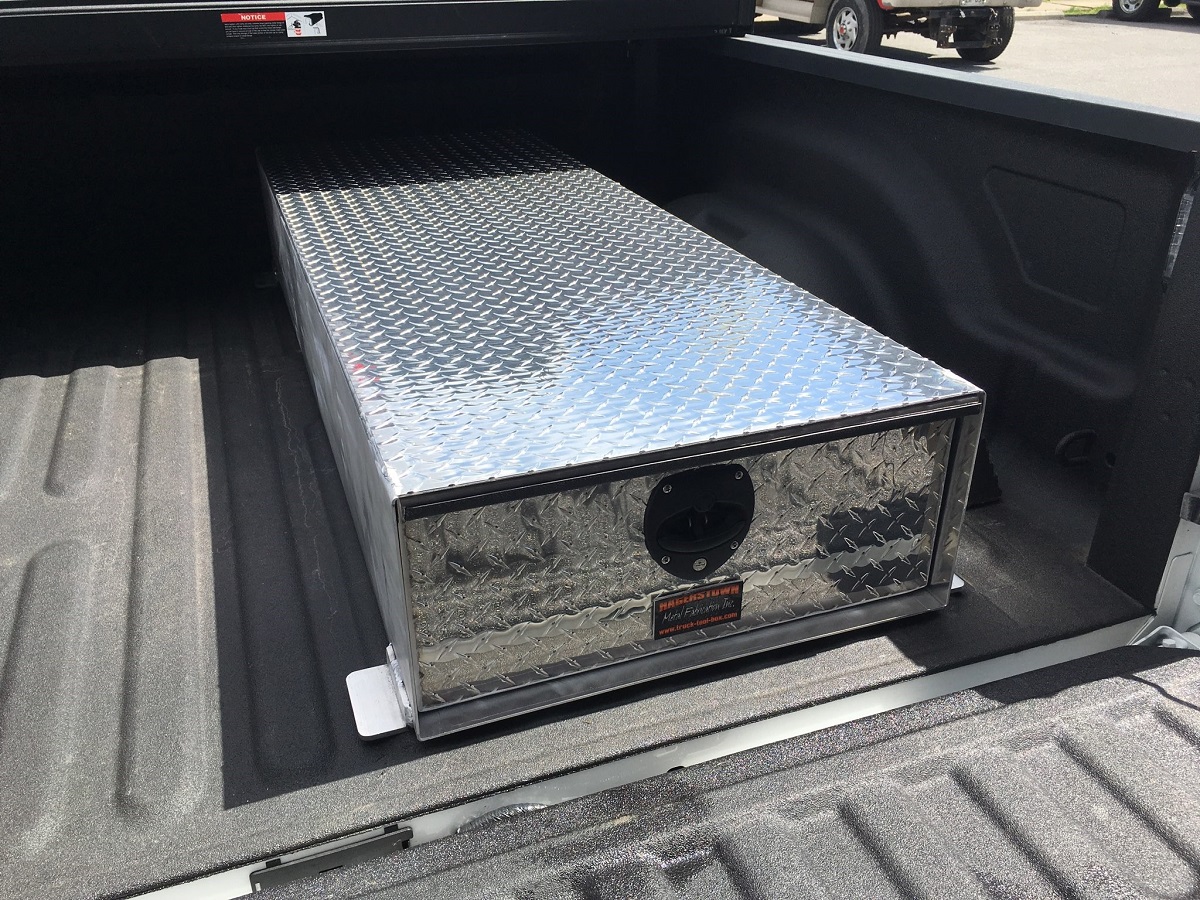

1 drawer aluminum tool box that is 65" Long x 24" Wide x 10 11/16" High. This unique aluminum one drawer truck bed tool box provides excellent weather resistant storage and security plus it allows you to use the full length and width of your truck bed. It is designed to fit between the wheel wells and closed tailgate of any size pickup truck or van.
Inside Dimensions: 63 3/8" Long (At Bottom of drawer) x 23 3/16" Wide x 9" High
Custom sizes also available! We can also build a custom size at an affordable price to better fit your needs.
2016 - 2018 Chevy trucks do not have the tailgates sitting level with the bed. This creates an issue with the drawers pulling out. This can be fixed by welding a 1 1/2” square tube under the bottom to give the box the clearance it needs. If we do this the total outside height will be 12 7/16”.
When ordering online you can select the option to add the 1 ½” square tube to the bottom of the box. We also have customers who choose to fix the problem
Features:
- 1/8 inch thick aluminum diamond plate material
- Over 1000 pounds of top load capacity

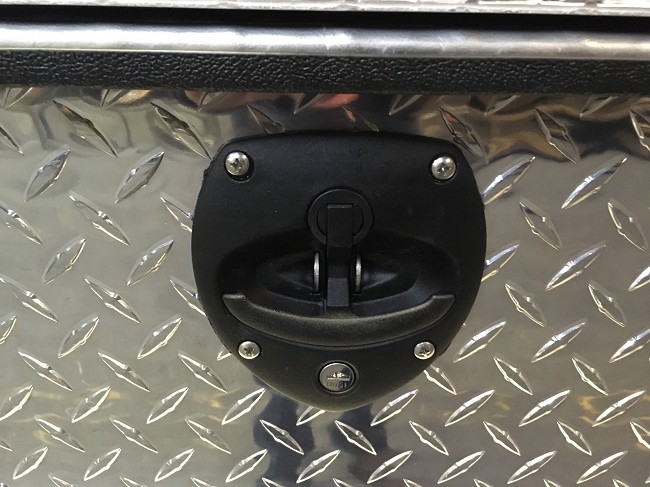

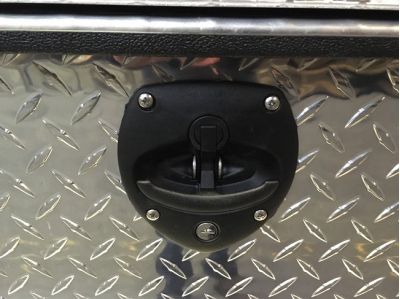

- Stainless steel latch screws for extra security
- Weather tight design with neoprene gasket keeps water out and tools dry
- 200 pound drawer load capacity
- Teflon glides under the drawer to make pulling the drawer out easy
- 10 year warranty
- Made in the USA
- The Narrow models are perfect for any full size or mid-size pickup
Available Options:
To see pictures of available options go to our accessories page.
